2024

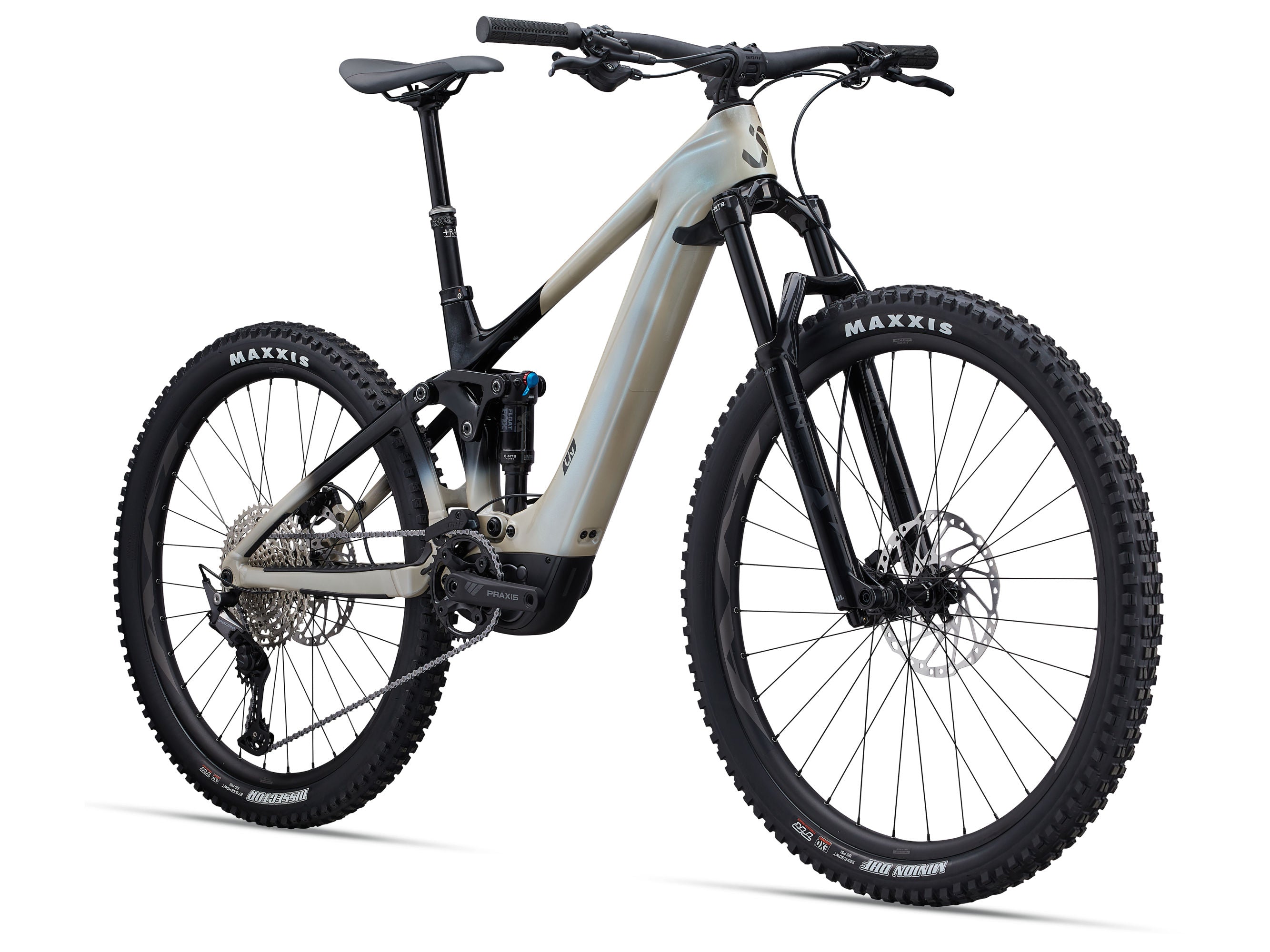

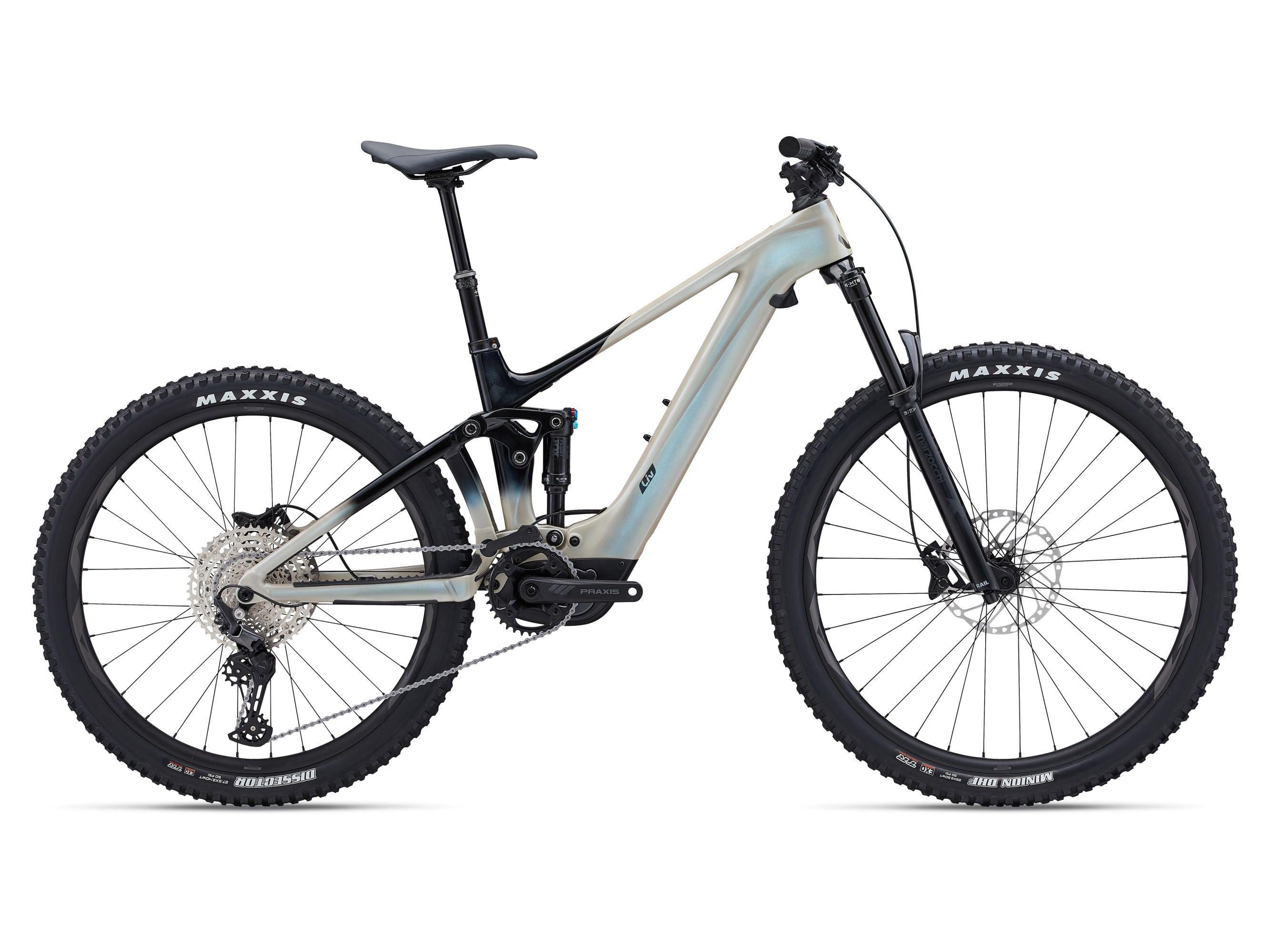

Liv Intrigue X Advanced E+ EL 3

Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.

Select colour

Shoreline

Select size

Select year

2024

View sizing guide

~~$8,999.00~~ AUD $7,999.00 AUD

SOLD OUT

Highlights

Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.

Powerful and smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.

Sleek design

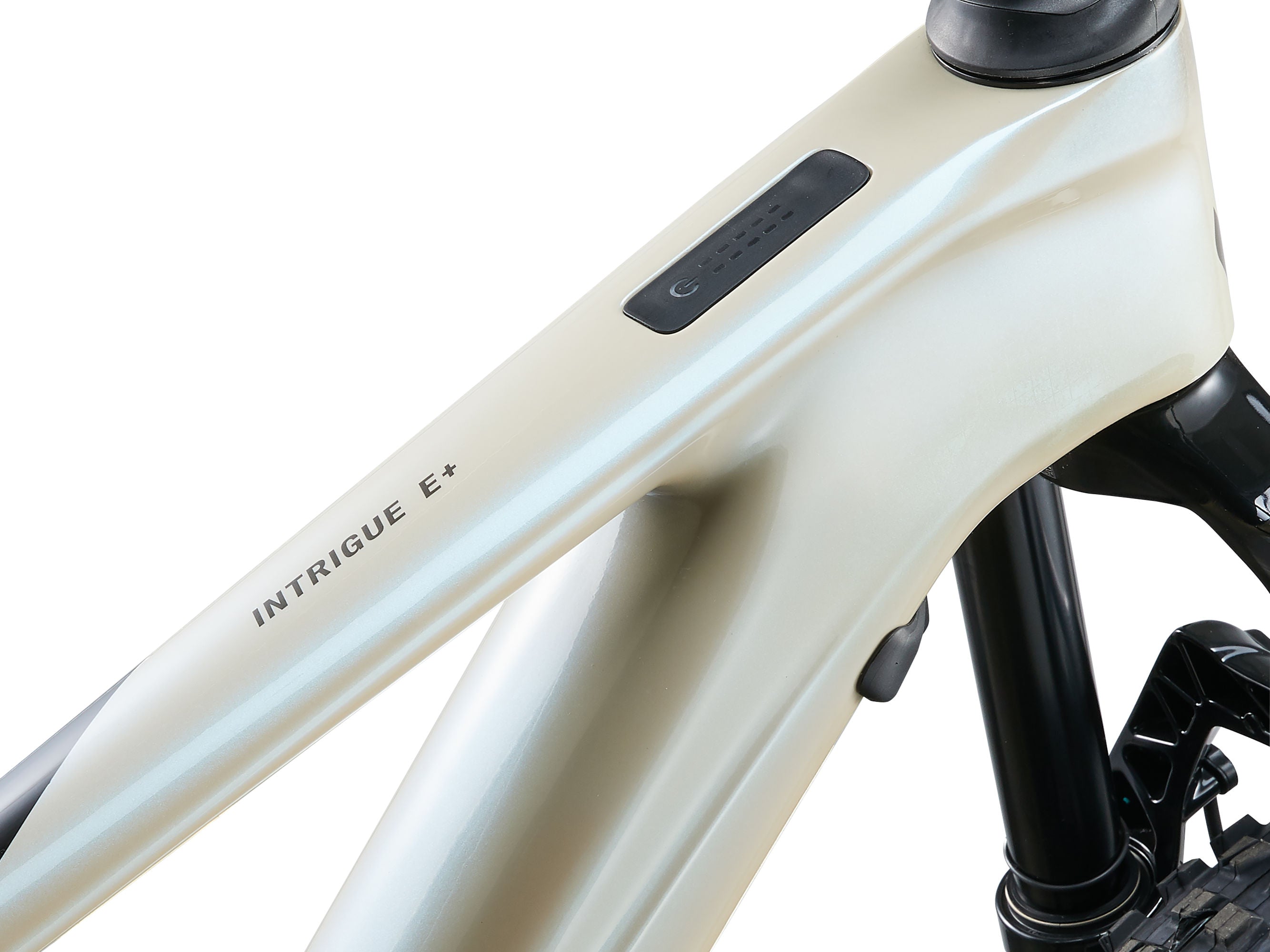

From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

Sizing guide

Size	cm feet
XS	152cm - 163cm 5’0” - 5’4”
S	158cm - 169cm 5’2” - 5’7”
M	164cm - 175cm 5’5” - 5’9”
L	170cm - 181cm 5’7” - 5’11”

Geometry

	XS	S	M	L
Seat Tube Length	XS380	S400	M425	L450
Seat Tube Angle	XS77.2°	S77.2°	M76.0°	L76.0°
Top Tube Length	XS557 \| 555	S572 \| 570	M597 \| 595	L622 \| 620
Head Tube Length	XS95	S95	M100	L115
Head Tube Angle	XS65.7° \| 66.5°	S65.7° \| 66.5°	M65.8° \| 66.5°	L65.8° \| 66.5°
Fork Rake (mm)	XS44	S44	M44	L44
Trail	XS113.1 \| 108	S113.1 \| 108	M113.1 \| 108	L113.1 \| 108
Wheelbase	XS1174 \| 1175	S1188 \| 1190	M1200 \| 1201	L1228 \| 1229
Chain Stay Length	XS447 \| 447	S447 \| 447	M447 \| 447	L447 \| 447
Bottom Bracket Drop	XS30 \| 20	S30 \| 20	M30 \| 20	L30 \| 20
Stack	XS606 \| 601	S606 \| 601	M611 \| 605	L625 \| 619
Reach	XS419 \| 427	S434 \| 442	M444 \| 452	L466 \| 473
Stand Over Height	XS722 \| 730	S726 \| 735	M717 \| 726	L711 \| 723
Stem Length	XS40	S40	M40	L50
Crank Length	XS160	S160	M165	L165
Wheel Size	XS[F] 29" [R	S[F] 29" [R	M[F] 29" [R	L[F] 29" [R

Technical specifications

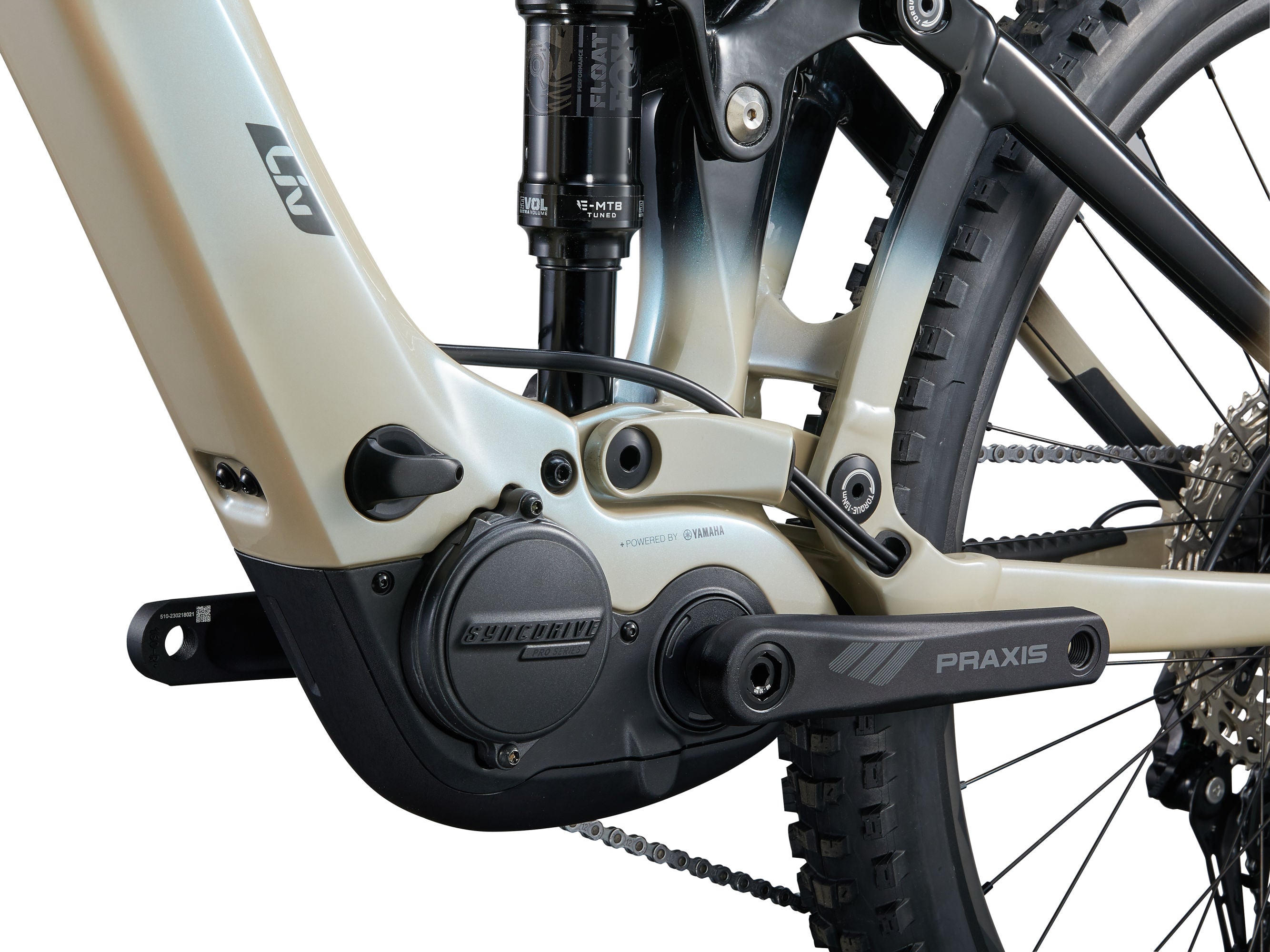

Motor	Giant SyncDrive Pro2 85Nm, powered by Yamaha, PedalPlus 6-Sensor technology
Controller	Giant RideControl Ergo3, grip integrated remote
Display	RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery	EnergyPak Smart 400Wh EnergyPak Plus, Giant EnergyPak Plus 200 range extender compatible
Size	XS, S, M, L
Colours	Shoreline
Frame	Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle

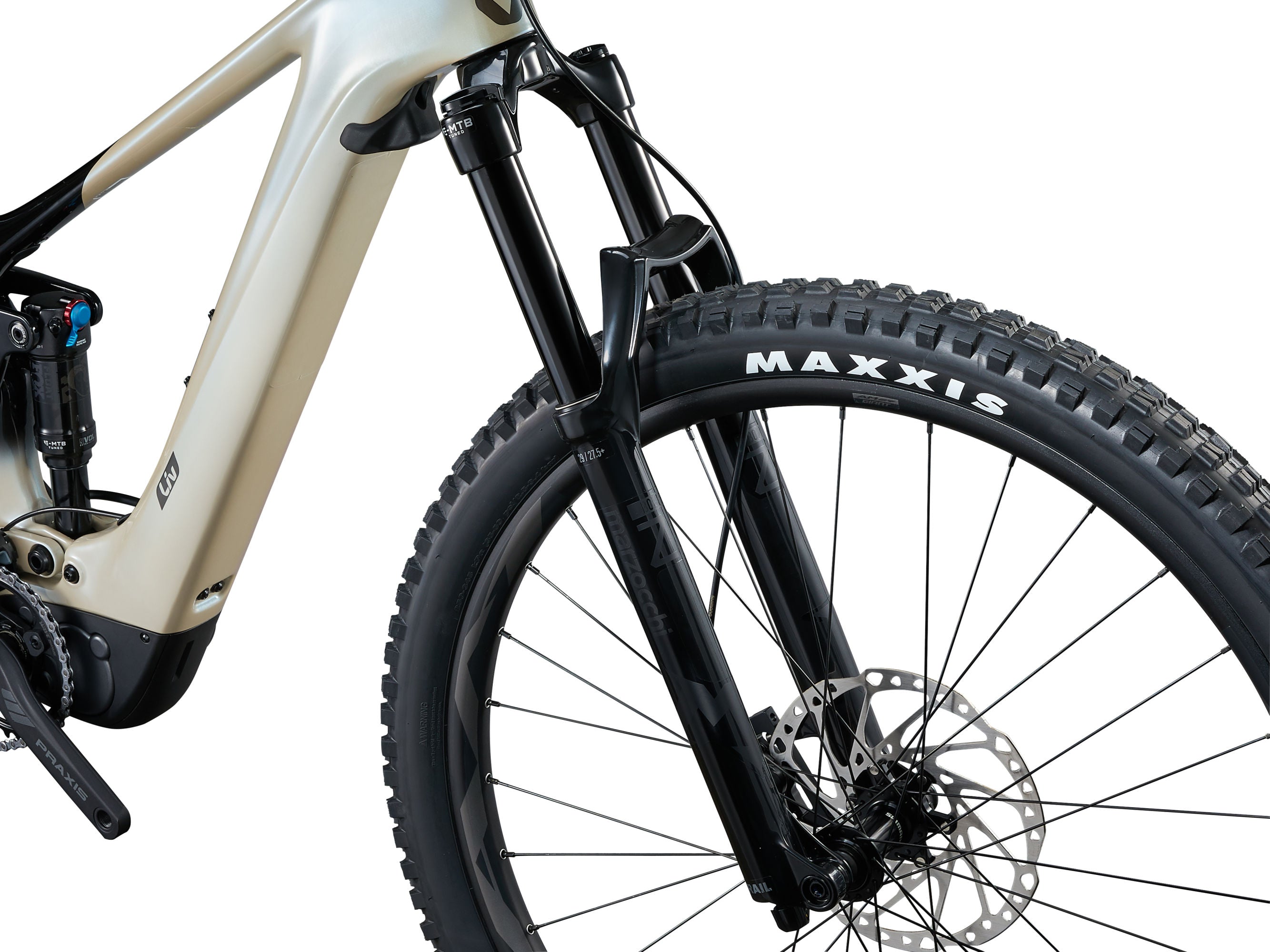

Fork	Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110

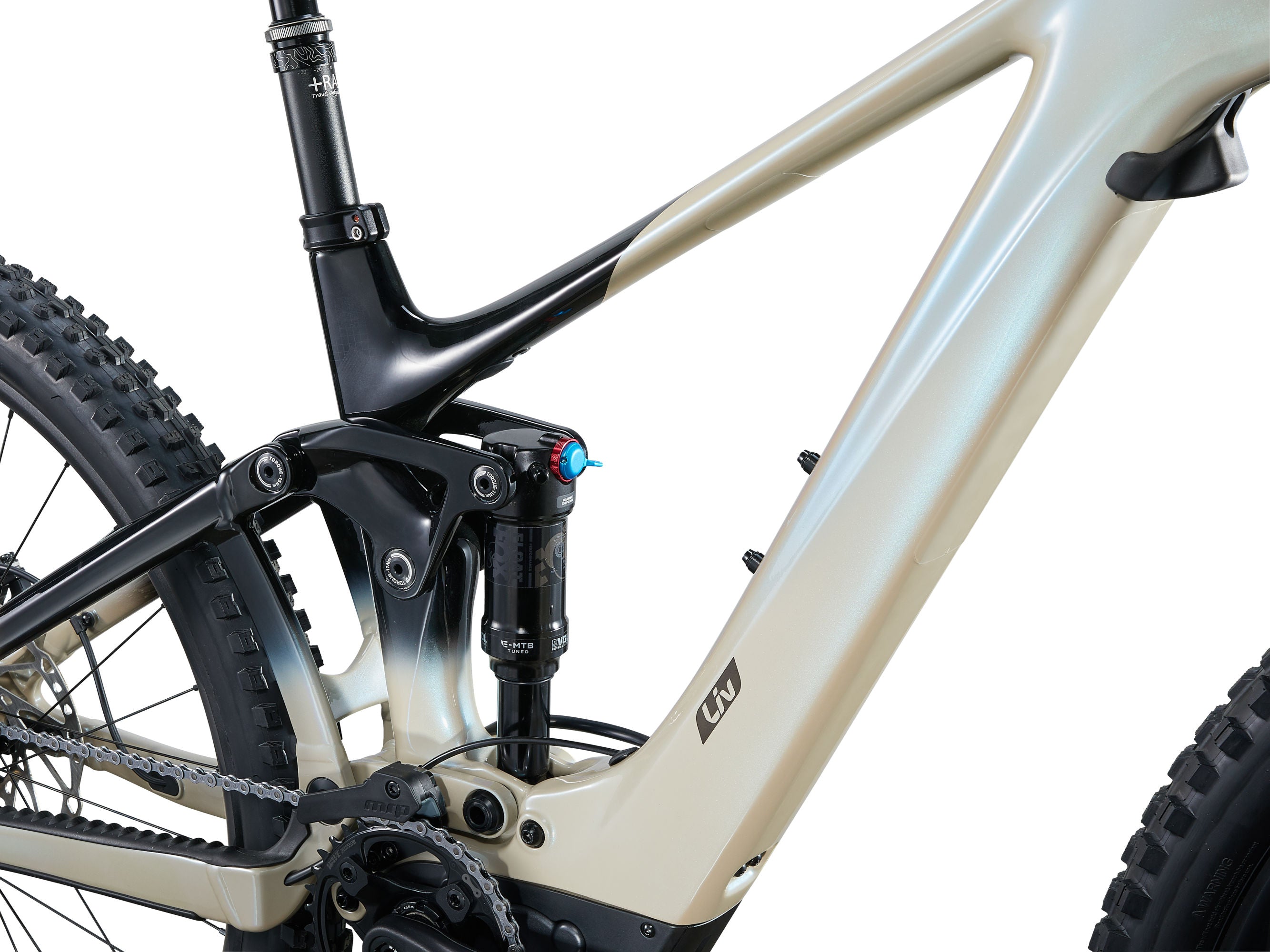

Shock	Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
Handlebar	Giant Contact 35 Trail, 35mm
Grips	Liv Tactal Pro-E Single Lock-On Grips
Stem	Giant Contact SL 35
Seatpost	TranzX travel-adjustable dropper, remote XS: 90-125mm travel / 30.9 x 409mm S: 90-125mm travel / 30.9 x 409mm M: 140-170mm travel / 30.9 x 459mm L: 140-140mm travel / 30.9 x 499mm
Saddle	Liv Sylvia E+
Pedals	N/A
Shifters	Shimano Deore
Front Derailleur	MRP HD2 co-moulded chain guide
Rear Derailleur	Shimano Deore 12-speed, Shadow+
Brakes	Shimano BR-MT420, 4-piston, hydraulic disc, 203mm
Brake Levers	Shimano Deore, I-spec EV
Cassette	Shimano CS-M6100-12, 10-51T, 12-speed
Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset	Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set XS:160mm, S: 160mm, M: 165mm, L:165mm
Bottom Bracket	N/A
Rims	Giant AM, alloy 29" [F], 27.5" [R]
Hubs	Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]
Spokes	Sapim E-Lite [R] Race [F], e-bike optimised
Tires	Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Extras	Tubeless kit (liquid, valves, levers) Inner tube supplied
Lighting	Optional:- Giant Recon series e-bike lights available and direct connectable
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
