2023

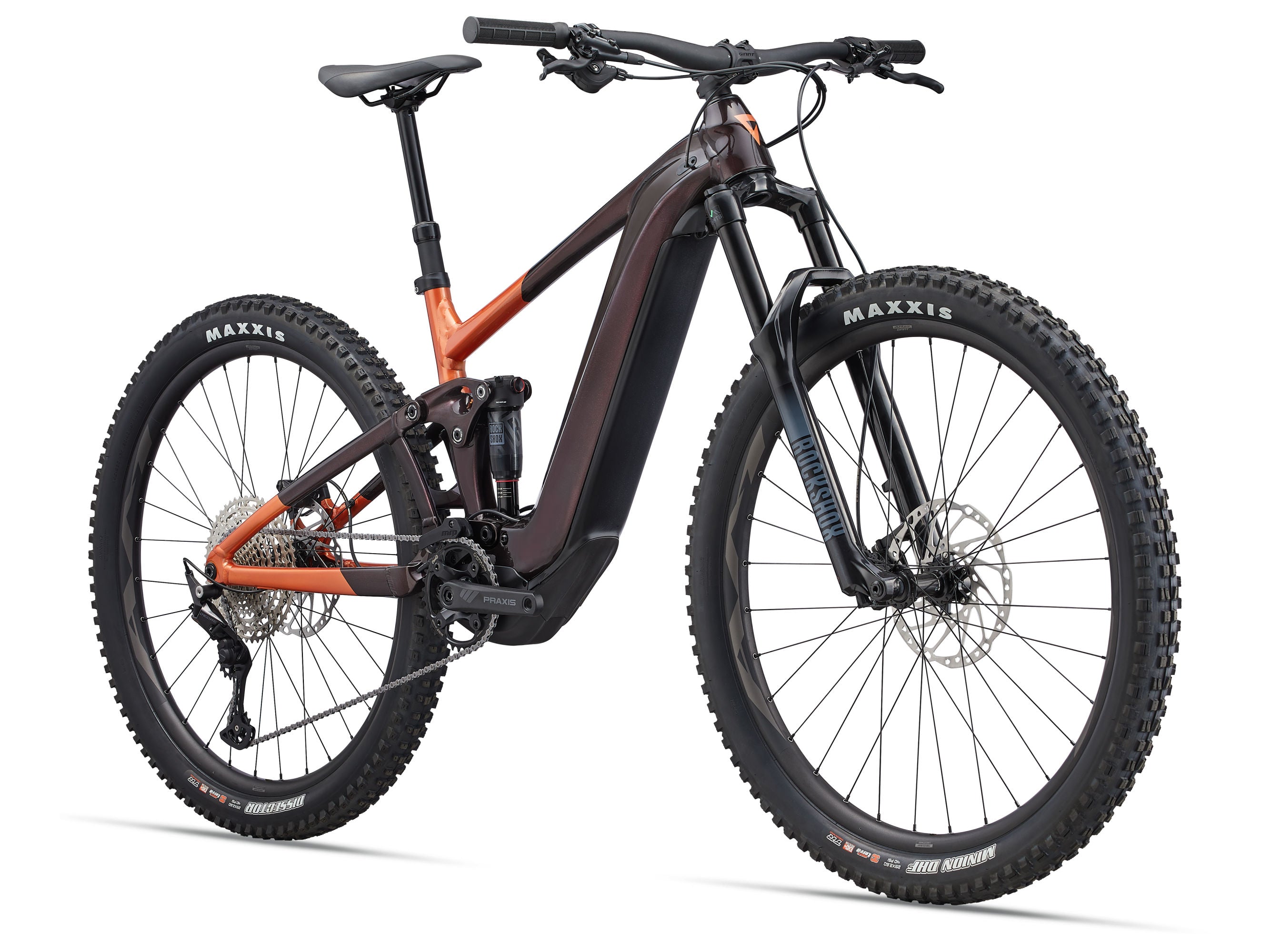

Giant Trance X E+ 3 25km/h (23)

Faster up the climbs, longer loops, more singletrack fun on any given day. Free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding E-bike.

Select color

Cordovan

Select size

~~$7,999.00~~ AUD $7,299.00 AUD View sizing guide

~~$7,999.00~~ AUD $7,299.00 AUD

SOLD OUT

Highlights

Smooth, powerful support
SyncDrive Pro motor delivers 85Nm of torque and tuneable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.

Trail-riding control
Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.

Adaptable to the terrain
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

Technologies

Sizing guide

Size	cm feet
S	163cm - 174cm 5’4” - 5’9”
M	171cm - 182cm 5’7” - 6’0”
L	179cm - 190cm 5’10” - 6’3”
XL	187cm - 198cm 6’2” - 6’6”

Geometry

	S	M	L	XL
Seat Tube Length	S400	M425	L450	XL475
Seat Tube Angle	S76.0° \| 76.7°	M76.0° \| 76.7°	L76.0° \| 76.7°	XL76.0° \| 76.7°
Top Tube Length	S577 \| 575	M610 \| 605	L637 \| 635	XL667 \| 665
Head Tube Length	S95	M100	L110	XL120
Head Tube Angle	S65.7° \| 66.5°	M65.8° \| 66.5°	L65.8° \| 66.5°	XL65.8° \| 66.5°
Fork Rake (mm)	S44	M44	L44	XL44
Trail	S117 \| 122.4	M117 \| 122.4	L117 \| 122.4	XL117 \| 122.4
Wheelbase	S1205 \| 1206	M1239 \| 1237	L1268 \| 1269	XL1300 \| 1301
Chain Stay Length	S473 \| 473	M473 \| 473	L473 \| 473	XL473 \| 473
Bottom Bracket Drop	S30 \| 20	M30 \| 20	L30 \| 20	XL30 \| 20
Stack	S606 \| 601	M611 \| 605	L621 \| 614	XL630 \| 624
Reach	S439 \| 447	M457 \| 462	L482 \| 489	XL510 \| 517
Stand Over Height	S783 \| 789	M775 \| 784	L763 \| 770	XL775 \| 782
Stem Length	S40	M50	L50	XL60
Crank Length	S160	M165	L165	XL170
Wheel Size	S29"	M29"	L29"	XL29"

Technical specifications

Motor	Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Controller	RideControl Ergo 3, grip integrated
Display	RideControl GO, frame integrated LED display ANT+ Wireless display compatible
Battery	Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger	Giant EnergyPak 6A smart charger, 60% in 2:10h
Connectivity	Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Size	S, M, L, XL
Colours	Cordovan
Frame	ALUXX SL-grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork	RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
Shock	Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Handlebar	Giant Contact 35 Trail
Grips	Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Stem	Giant Contact SL 35
Seatpost	Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm, M: 150mm travel / 30.9 x 440mm, L: 170mm travel / 30.9 x 450mm, XL: 170mm travel / 30.9 x 450mm
Saddle	Giant Romero E
Pedals	Flat pedals
Shifters	Shimano Deore
Front Derailleur	MRP HD2 co-moulded chain guide
Rear Derailleur	Shimano Deore, 12-speed
Brakes	Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers	Shimano Deore, I-spec EV
Cassette	Shimano CS-M6100-12, 10-51T, 12-speed
Chain	KMC e.12 Turbo, EcoProteq, e-bike optimized
Crankset	Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
Bottom Bracket	N/A
Rims	Giant AM 29"
Hubs	Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes	Sapim E-Lite [R] Race [F], e-bike optimized
Tires	Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Extras	Tubeless kit (liquid, valves, levers)
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
