2024

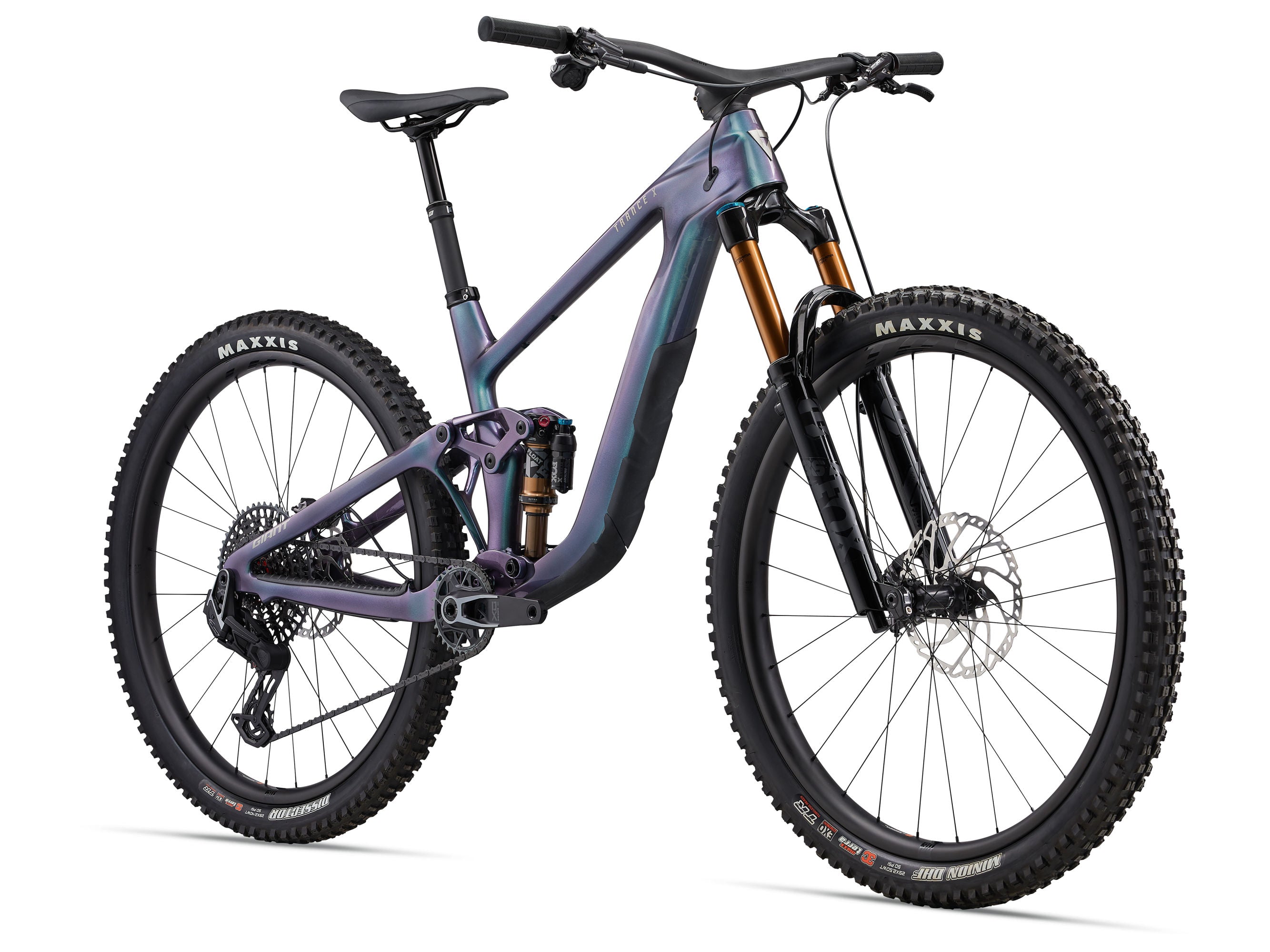

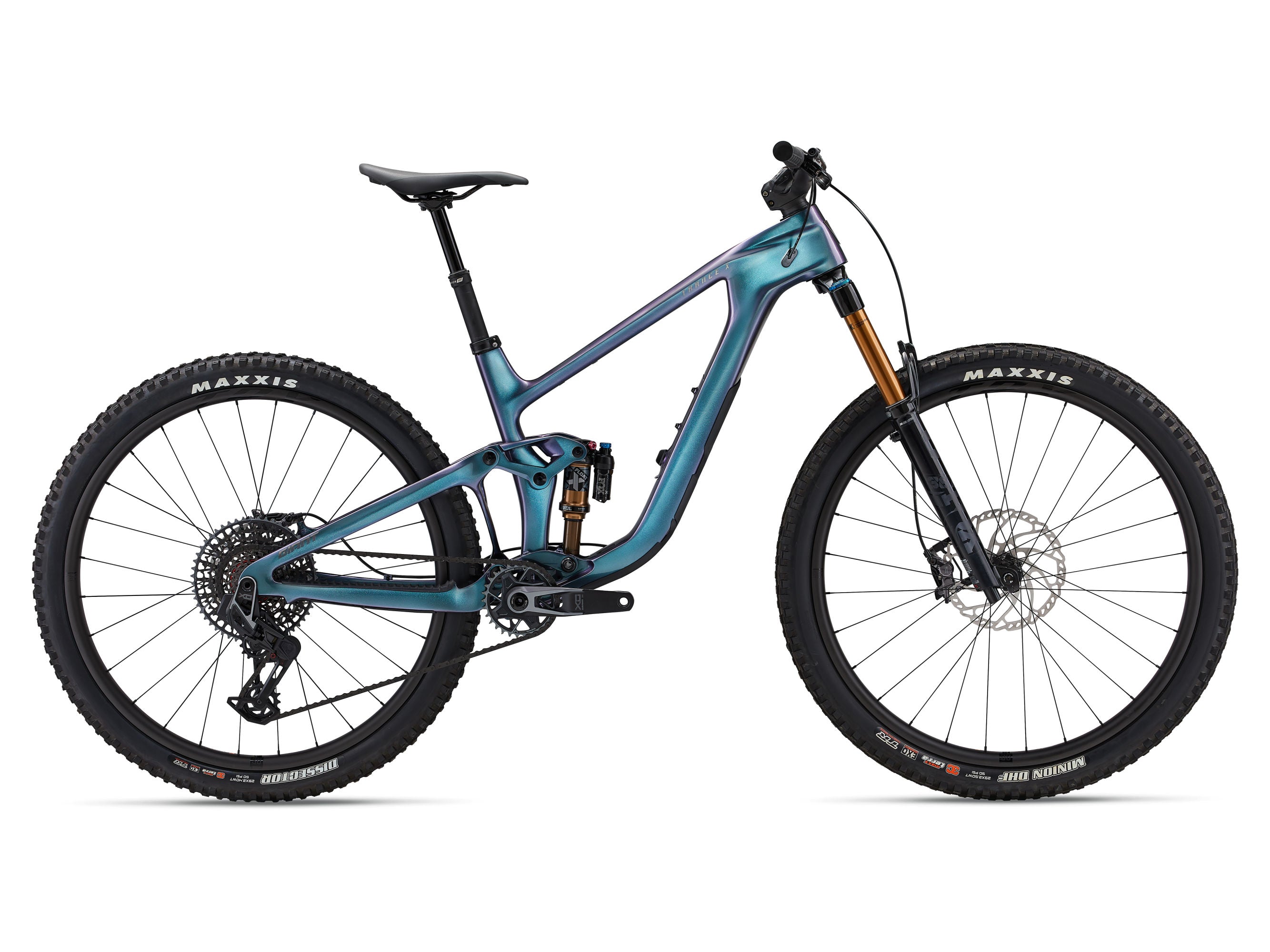

Giant Trance X Advanced 0
Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.
Thanks! We will notify you when this product becomes available!
Highlights
More Travel
New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
Adjustable trail geometry
A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
Sizing guide
| Size | cm feet |
|---|---|
| S |
163cm - 172cm
5’4” - 5’8”
|
| M |
171cm - 180cm
5’7” - 5’11”
|
| L |
179cm - 188cm
5’10” - 6’2”
|
| XL |
187cm - 196cm
6’2” - 6’5”
|
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Length | S400 | M16.7 | L17.7 | XL18.7 |
| Seat Tube Angle | S76.8° | 77.2° | 77.5° | M76.8° | 77.2° | 77.5° | L76.8° | 77.2° | 77.5° | XL76.8° | 77.2° | 77.5° |
| Top Tube Length | S571 | 570 | 569 | M23.7 | 23.7 | 23.6 | L24.6 | 24.5 | 24.5 | XL25.9 | 25.8 | 25.8 |
| Head Tube Length | S100 | M4.1 | L4.5 | XL4.9 |
| Head Tube Angle | S64.4° | 64.8° | 65.1° | M64.4° | 64.8° | 65.1° | L64.4° | 64.8° | 65.1° | XL64.4° | 64.8° | 65.1° |
| Fork Rake (mm) | S44 | M1.7 | L1.7 | XL1.7 |
| Trail | S134.1 | 131.3 | 128.4 | M5.3 | 5.2 | 5 | L5.2 | 5.2 | 5 | XL5.2 | 5.2 | 5 |
| Wheelbase | S1190 | 1190 | 1189 | M48.1 | 48.1 | 48.1 | L49.1 | 49.1 | 49 | XL50.4 | 50.4 | 50.4 |
| Chain Stay Length | S440 | 439 | 438 | M17.3 | 17.3 | 17.2 | L17.3 | 17.3 | 17.2 | XL17.3 | 17.3 | 17.2 |
| Bottom Bracket Drop | S40 | 35 | 30 | M1.6 | 1.4 | 1.2 | L1.6 | 1.4 | 1.2 | XL1.6 | 1.4 | 1.2 |
| Stack | S617 | 614 | 611 | M24.4 | 24.4 | 24.3 | L24.8 | 24.7 | 24.6 | XL25.2 | 25.1 | 25 |
| Reach | S426 | 430 | 434 | M18 | 18.1 | 18.3 | L18.7 | 18.9 | 19.1 | XL20 | 20.1 | 20.2 |
| Stand Over Height | S733 | 737 | 742 | M29 | 29.2 | 29.4 | L29.7 | 29.9 | 30 | XL29.6 | 29.8 | 30 |
| Stem Length | S40 | M1.6 | L2 | XL2 |
| Crank Length | S165 | M6.7 | L6.7 | XL6.7 |
| Wheel Size | S[F] 29" [R | M[F] 29" [R | L[F] 29" [R | XL[F] 29" [R |
Technical specifications
| Size | S, M, L, XL |
| Colours | Blue Dragonfly/Chrome |
| Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage |
| Fork | Fox 36 Factory, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset |
| Shock | Fox Float X Factory, two-position LSC adjust, 185/52.5, custom tuned for Giant |
| Handlebar | Giant Contact SLR Trail Integrated, composite, 35mm |
| Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
| Stem | Giant Contact Integrated SLR Trail S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM AXS Pod, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM XO Eagle AXS, T-Type |
| Brakes | Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Cassette | SRAM XO, T-Type, 10x52 |
| Chain | SRAM XO, T-Type |
| Crankset | SRAM XO, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
| Hubs | [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body |
| Spokes | Sapim, 28, straight pull, DBL Technology |
| Tires | [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |
| Extras | Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
