2022

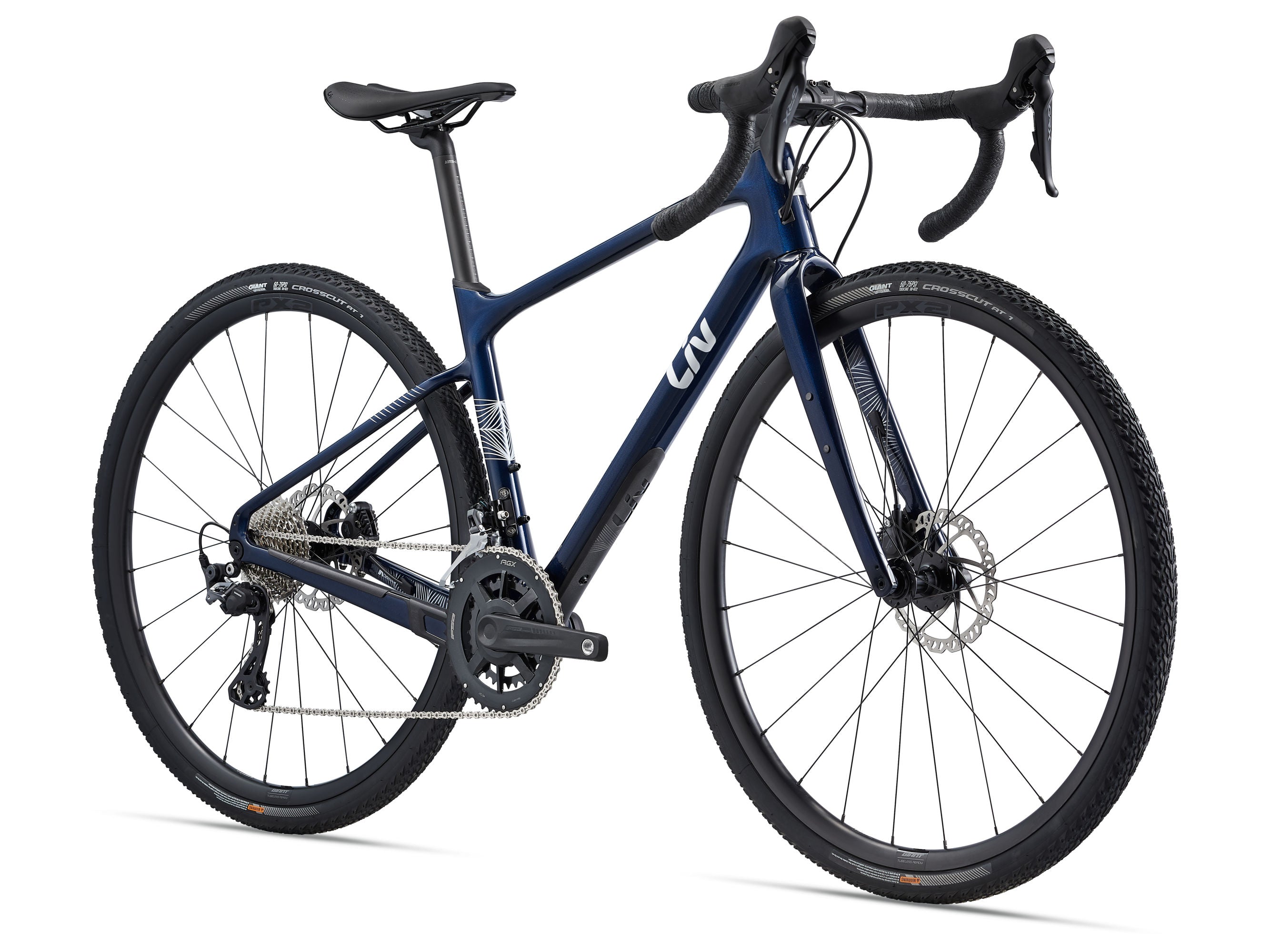

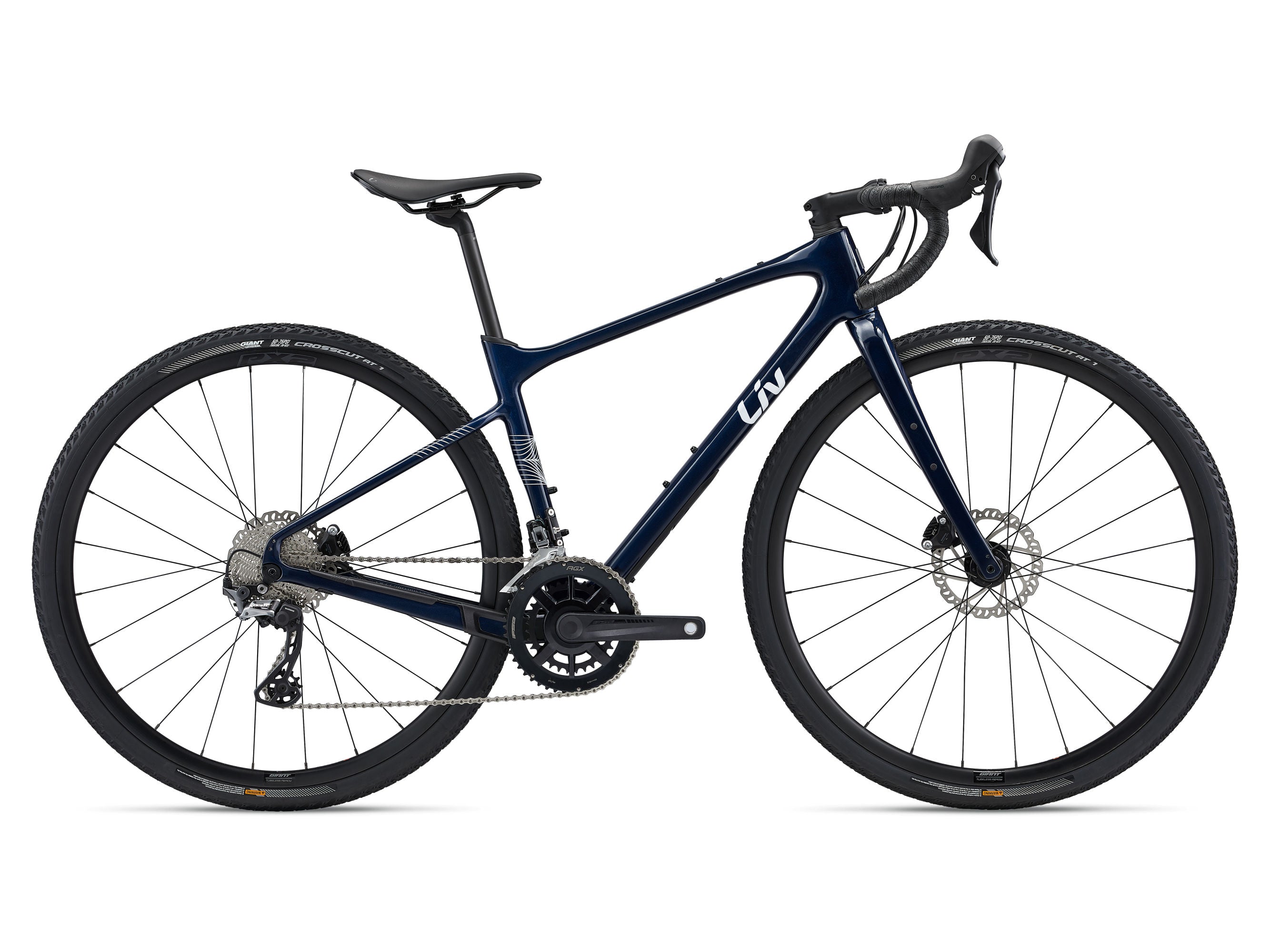

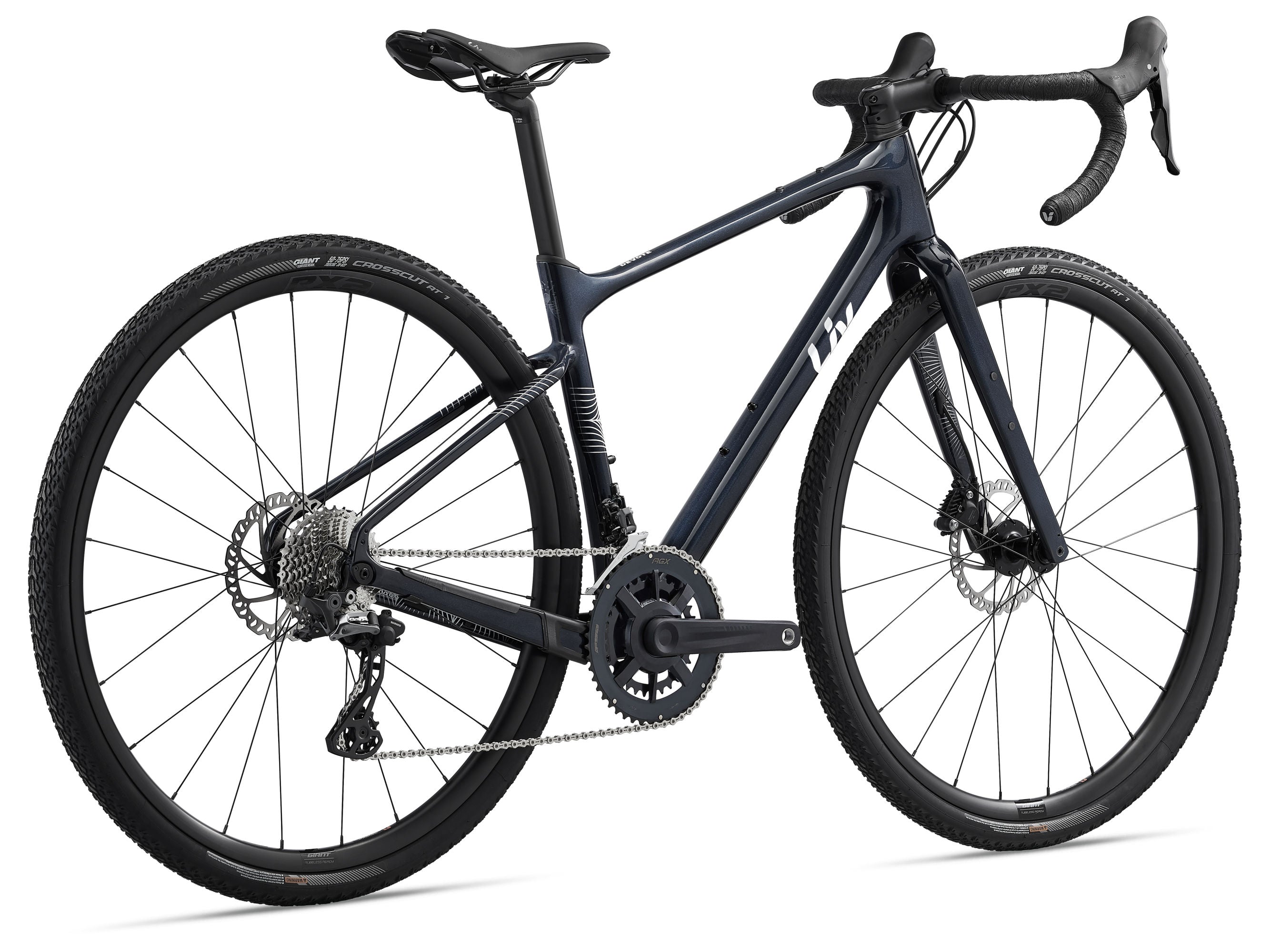

Liv Devote Advanced 2
From bikepacking and gravel grinders to everyday adventure rides and group trekking, Devote Advanced has what it takes to stir your backcountry desires.
Thanks! We will notify you when this product becomes available!
Highlights
Lightweight
Advanced-Grade Composite frame and fork keeps your ride lightweight so you can sail up climbs and accelerate quickly on paved or gravel roads.
Adventure-Ready
With clearance for 45c tyres and mounts for racks, accessories and three water bottle cages, this bike meets the demands of your next epic ride.
Smooth Operator
Internal cable routing and D-Fuse seatpost and handlebars keep this gravel bike clean and contoured for vibration-damping comfort and less maintenance.
Technologies
Sizing guide
| Size | cm feet |
|---|---|
| XS |
150cm - 163cm
4’11” - 5’4”
|
| S |
158cm - 169cm
5’2” - 5’7”
|
| M |
164cm - 175cm
5’5” - 5’9”
|
| L |
170cm - 181cm
5’7” - 5’11”
|
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Seat Tube Length | XS390 | S420 | M465 | L500 |
| Seat Tube Angle | XS75.0° | S75.0° | M74.5° | L74.5° |
| Top Tube Length | XS515 | S525 | M535 | L550 |
| Head Tube Length | XS95 | S125 | M155 | L180 |
| Head Tube Angle | XS70.5° | S70.5° | M71.0° | L71.0° |
| Fork Rake (mm) | XS50 | S50 | M50 | L50 |
| Trail | XS75.9 | S75.9 | M72.5 | L72.5 |
| Wheelbase | XS1013 | S1020 | M1022 | L1039 |
| Chain Stay Length | XS430 | S430 | M430 | L430 |
| Bottom Bracket Drop | XS80 | S80 | M80 | L80 |
| Stack | XS530 | S558 | M588 | L612 |
| Reach | XS378 | S376 | M372 | L380 |
| Stand Over Height | XS683 | S711 | M749 | L779 |
| Stem Length | XS70 | S80 | M90 | L90 |
| Crank Length | XS165 | S170 | M172.5 | L172.5 |
| Wheel Size | XS700c | S700c | M700c | L700c |
Technical specifications
| Size | XS, S, M, L |
| Colours | Candy Navy |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR D-Fuse, 31.8 XS:40cm, S:40cm, M:42cm, L:42cm |
| Grips | Liv All Condition |
| Stem | Giant Contact XS:70mm, S:80mm, M:90mm, L:90mm |
| Seatpost | Giant D-Fuse, composite |
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano GRX RX-600, 2x11 |
| Front Derailleur | Shimano GRX RX-810 |
| Rear Derailleur | Shimano GRX RX-810 |
| Brakes | Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano GRX RX-600 hydraulic |
| Cassette | Shimano 105, 11-speed, 11x34 |
| Chain | KMC X11SL-1 |
| Crankset | Praxis Alba 2D, 32/48 XS:165mm, S:170mm, M:172.5mm, L:172.5mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant P-X2 Disc wheelset |
| Hubs | Giant P-X2 Disc wheelset |
| Spokes | Giant P-X2 Disc wheelset |
| Tires | Giant CrossCut AT 1, 700x38c, tubeless |
| Extras | Tubeless prepared, 50mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
