Name: Giant Trance X 1
Brand: Giant Melbourne
SKU: 9110001108
Price: 5499.0 AUD
Availability: OutOfStock

Highlights

Updated suspension

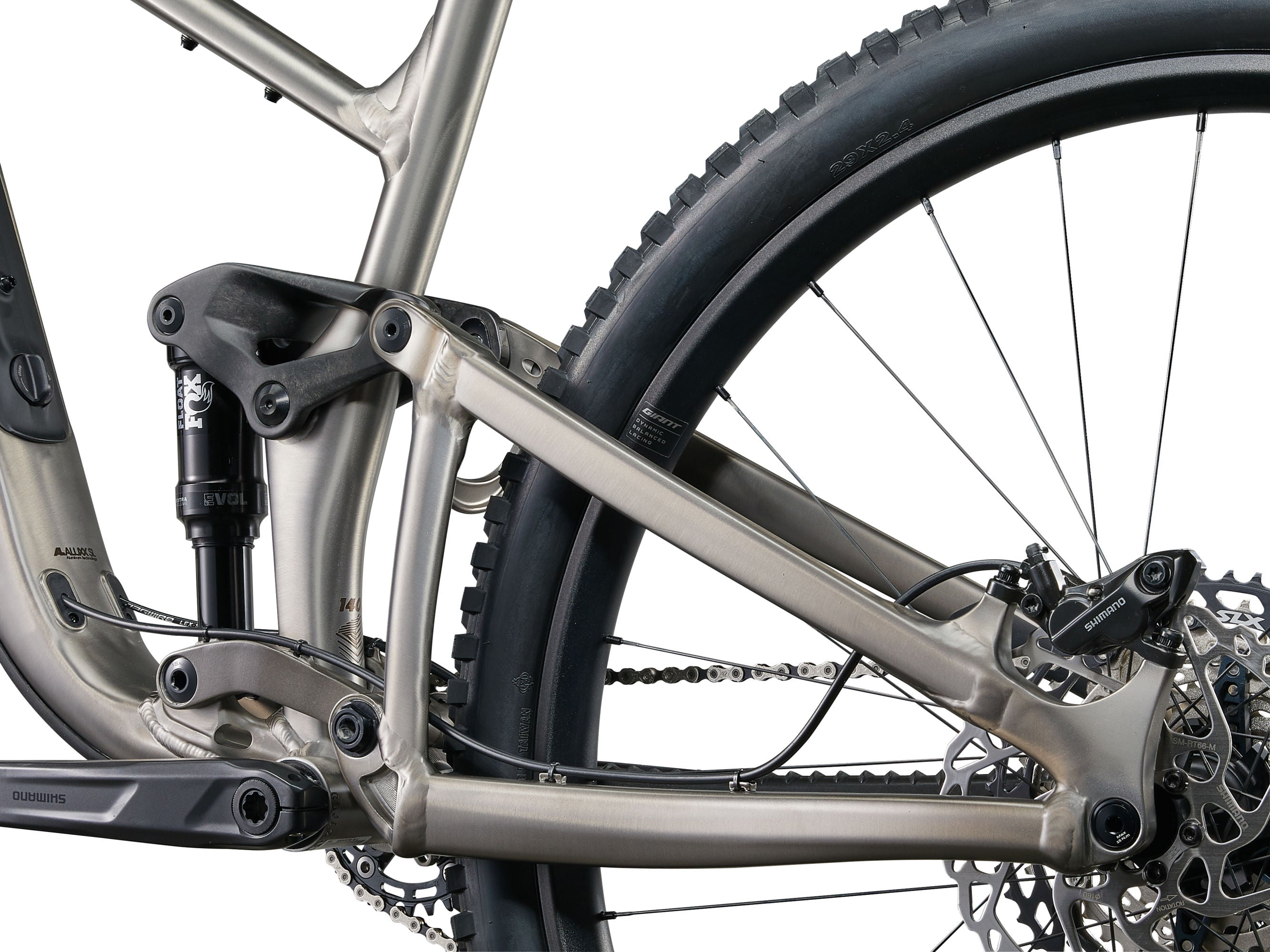

A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.

The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminium chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

The all-new frameset is engineered with a super strong and lightweight ALUXX SL aluminium chassis and updated Maestro suspension system. With 140mm of rear travel and a 150mm fork, it gobbles up rocks, roots and ruts with ease. The frame is equipped with two, three-position flip chips for the ultimate in adjustability. The rear flip chip, located on the Maestro rocker arm, lets you change frame geometry and switch the standard 29-inch rear wheel to 27.5 if you prefer. A second flip chip at the headset provides 10mm of reach adjustment. New, integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage, and protection on the down tube prevents damage from trail debris and transportation.

Technologies

Sizing guide

Size	cm feet
S	163cm - 172cm 5’4” - 5’8”
M	171cm - 180cm 5’7” - 5’11”
L	179cm - 188cm 5’10” - 6’2”
XL	187cm - 196cm 6’2” - 6’5”

Geometry

	S	M	L	XL
Seat Tube Length	S400	M425	L450	XL475
Seat Tube Angle	S76.8° \| 77.2° \| 77.5°	M76.8° \| 77.2° \| 77.5°	L76.8° \| 77.2° \| 77.5°	XL76.8° \| 77.2° \| 77.5°
Top Tube Length	S571 \| 570 \| 569	M602 \| 601 \| 600	L624 \| 623 \| 622	XL657 \| 656 \| 655
Head Tube Length	S100	M105	L115	XL125
Head Tube Angle	S64.4° \| 64.8° \| 65.1°	M64.4° \| 64.8° \| 65.1°	L64.4° \| 64.8° \| 65.1°	XL64.4° \| 64.8° \| 65.1°
Fork Rake (mm)	S44	M44	L44	XL44
Trail	S134.1 \| 131.3 \| 128.4	M134 \| 131.3 \| 128.5	L133.9 \| 131.3 \| 128.5	XL133.9 \| 131.3 \| 128.6
Wheelbase	S1190 \| 1190 \| 1189	M1222 \| 1222 \| 1221	L1246 \| 1246 \| 1245	XL1281 \| 1280 \| 1280
Chain Stay Length	S440 \| 439 \| 438	M440 \| 439 \| 438	L440 \| 439 \| 438	XL440 \| 439 \| 438
Bottom Bracket Drop	S40 \| 35 \| 30	M40 \| 35 \| 30	L40 \| 35 \| 30	XL40 \| 35 \| 30
Stack	S617 \| 614 \| 611	M621 \| 619 \| 616	L631 \| 628 \| 625	XL640 \| 637 \| 634
Reach	S426 \| 430 \| 434	M456 \| 460 \| 464	L476 \| 480 \| 484	XL507 \| 510 \| 514
Stand Over Height	S732 \| 737 \| 742	M746 \| 750 \| 755	L763 \| 768 \| 773	XL781 \| 758 \| 790
Stem Length	S40	M40	L50	XL50
Crank Length	S165	M170	L170	XL170
Wheel Size	S[F] 29" [R	M[F] 29" [R	L[F] 29" [R	XL[F] 29" [R

Technical specifications

Size	S, M, L, XL
Colours	Smoke Metal
Frame	ALUXX SL-Grade Aluminium front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage
Fork	Fox 36 Float Performance, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset
Shock	Fox Float Performance, 185/52.5, custom tuned for Giant
Handlebar	Giant Contact TR35, alloy, 35mm
Grips	Giant Contact TR35, alloy, 35mm
Stem	Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost	Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle	Giant Romero
Pedals	N/A
Shifters	Shimano SLX M-7100, I-Spec EV, 1x12
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M-7100, Shadow +
Brakes	Shimano BR-MT520, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers	Shimano Deore BL-MT501
Cassette	Shimano SLX M7100, 10x51
Chain	KMC X-12
Crankset	Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket	Shimano Press Fit
Rims	Giant TRA WheelSystem, alloy, hollow rim wall construction, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs	[F] Giant Alloy, 6 Bolt [R] TRA HE, Alloy, 72 Pawl Driver, 6 bolt
Spokes	Sapim, 28, straight pull, DBL Technology
Tires	[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Extras	Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
