Name: Giant Reign Advanced Pro 0
Brand: Giant Melbourne
SKU: 2311099104
Price: 14999.0 AUD
Availability: OutOfStock

Highlights

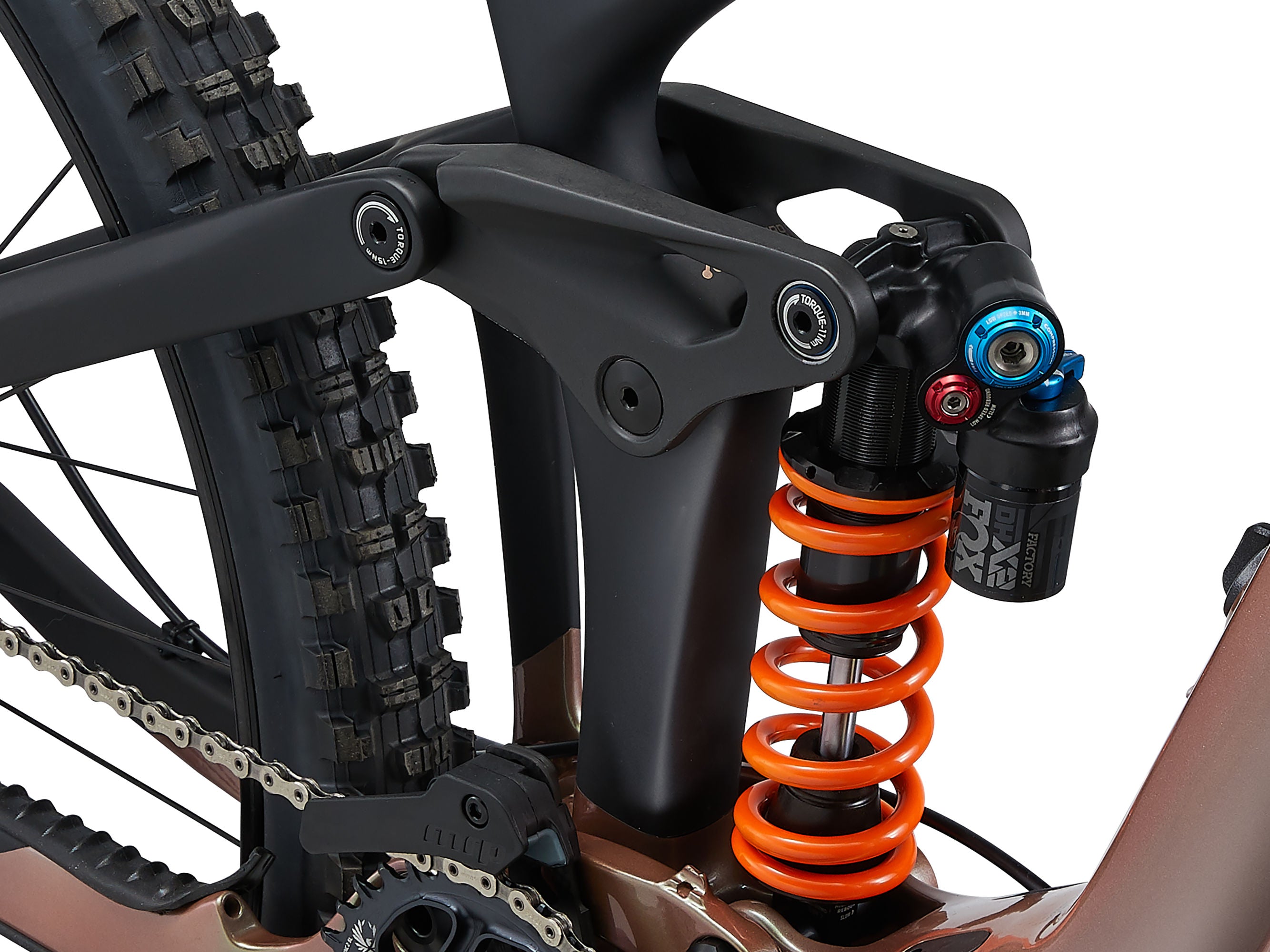

Race-bred suspension
A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry
New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.

This full-composite frameset is engineered with enduro racing geometry and adjustability that lets you change the bike’s handling and riding characteristics with three flip chip settings. Also new is the ability to swap out the stock 29-inch rear wheel for a smaller 27.5-inch one. This “mullet” setup makes for an equally short chainstay length and a shorter reach, giving the bike a snappier feel on aggressive terrain. The updated Maestro suspension system has 160mm of rear wheel travel, paired with a 170mm fork up front. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.

Technologies

Sizing guide

Size	cm feet
S	163cm - 172cm 5’4” - 5’8”
M	171cm - 180cm 5’7” - 5’11”
L	179cm - 188cm 5’10” - 6’2”
XL	187cm - 198cm 6’2” - 6’6”

Geometry

	S	M	L	XL
Seat Tube Length	S400	M425	L450	XL475
Seat Tube Angle	S78.3° \| 78.7° \| 79.0°	M78.3° \| 78.7° \| 79.0°	L77.3° \| 77.7° \| 78.0°	XL77.3° \| 77.7° \| 78.0°
Top Tube Length	S556 \| 555 \| 555	M587 \| 586 \| 585	L620 \| 620 \| 619	XL652 \| 652 \| 651
Head Tube Length	S100	M105	L115	XL120
Head Tube Angle	S63.5° \| 63.9° \| 64.2°	M63.5° \| 63.9° \| 64.2°	L63.5° \| 63.9° \| 64.2°	XL63.5° \| 63.9° \| 64.2°
Fork Rake (mm)	S44	M44	L44	XL44
Trail	S140 \| 138 \| 135	M140 \| 138 \| 135	L140 \| 138 \| 135	XL140 \| 138 \| 135
Wheelbase	S1214 \| 1213 \| 1212	M1246 \| 1245 \| 1244	L1271 \| 1270 \| 1269	XL1304 \| 1303 \| 1302
Chain Stay Length	S445 \| 443 \| 442	M445 \| 443 \| 442	L445 \| 443 \| 442	XL445 \| 443 \| 442
Bottom Bracket Drop	S35 \| 30 \| 25	M35 \| 30 \| 25	L35 \| 30 \| 25	XL35 \| 30 \| 25
Stack	S627 \| 624 \| 622	M632 \| 629 \| 626	L641 \| 638 \| 635	XL645 \| 642 \| 639
Reach	S426 \| 430 \| 434	M456 \| 460 \| 464	L476 \| 480 \| 484	XL506 \| 510 \| 514
Stand Over Height	S720 \| 724 \| 729	M735 \| 739 \| 744	L751 \| 756 \| 760	XL746 \| 751 \| 756
Stem Length	S40	M40	L40	XL40
Crank Length	S165	M170	L170	XL170
Wheel Size	S29"	M29"	L29"	XL29"

Technical specifications

Size	S, M, L, XL
Colours	Gloss Messier/Matte Carbon
Frame	Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 55mm Chainline
Fork	Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock	Fox DHX2 Factory, coil, 205/62.5, custom tuned for Giant S:425#, M:425#, L:450#, XL: 475#
Handlebar	Giant Contact SLR TR35, composite, 20mm rise
Grips	Giant Tactal Pro Single
Stem	Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Seatpost	TranzX travel-adjustable dropper, remote
Saddle	Giant Romero SL
Pedals	N/A
Shifters	SRAM Eagle AXS Rocker Paddle, 1x12
Front Derailleur	N/A
Rear Derailleur	SRAM XX1 Eagle AXS
Brakes	Shimano XTR M-9120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
Brake Levers	Shimano XTR BL-M9120
Cassette	SRAM X01 Eagle, 10x52
Chain	SRAM X01 Eagle
Crankset	SRAM XX1 Eagle, 34t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket	SRAM DUB, press fit
Rims	Zipp 3ZERO MOTO 29 Carbon (*Quarq TyreWiz not included)
Hubs	Zipp 3ZERO MOTO ZM2
Spokes	ZIPP 3ZERO MOTO
Tires	[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras	Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide, 3M tailgate protector
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
